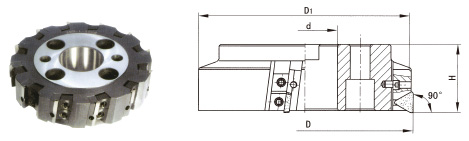

| Indexable face Mills Kr90° |
|
.jpg)
ZMA series
| Model Specification |
Number of teeth Z |
Size |
Installation 装 |
Blade |
accessories |
| D |
D1 |
H |
d |
Type |
lock block |
Shim |
Double screw |
Wrench |
| ZMA 100 |
5 |
100 |
96 |
50 |
32 |
B |
82° 4XH16 |
ZMAL02 |
ZMAL03 |
GML100 |
GML130 |
| ZMA 125 |
6 |
125 |
121 |
63 |
40 |
| ZMA 160; |
9 |
160 |
156 |
| ZMA200 |
12 |
200 |
196 |
60 |
C (CA) |
| ZMA 250 |
15 |
250 |
246 |
| ZMA315 |
18 |
315 |
311 |
80 (70) |
| ZMA 350 |
20 |
350 |
346 |
| ZMA400 |
24 |
400 |
396 |
| ZMA500 |
30 |
500 |
496 |
ZMB series
| Model Specification |
Number of teeth Z |
Size 寸 |
Installation |
Blade |
.Accessories |
| D |
D1 |
H |
d |
Type |
lock block |
Shim |
Eccentric pin |
Double screw |
Wrench |
| ZMB 125 |
6 |
125 |
121 |
63 |
40 |
B |
TPCN2204PDR |
ZMB 125-03 |
ZMB 125-02 |
GMA-02A2 |
GML100 |
GML130 |
| ZMB 160 |
9 |
160 |
156 |
| ZMB 200 |
12 |
200 |
196 |
60 |
C (CA) |
| ZMB 250 |
15 |
250 |
246 |
| ZMB 315 |
18 |
315 |
311 |
80 (70) |
| ZMB 350 |
20 |
350 |
346 |
| ZMB 400 |
24 |
400 |
396 |
| ZMB 500 |
30 |
500 |
496 |
|
|
|
|
